Engineered For High-pressure Gas Applications

Material	Main Advantage	Typical Application
Virgin PTFE	Chemical resistance / low friction	Chemical / static
Carbon PTFE	Wear resistance	Dynamic
Bronze PTFE	Load / wear resistance	Hydraulic
Glass PTFE	Dimensional stability	Chemical
Ekonol PTFE	Wear / friction performance	Dynamic / rotary
PEEK	Strength / extrusion resistance	High pressure
PCTFE	Low-temperature performance	Cryogenic
FKM / FKM ED	Heat / hydrocarbon / RGD	Oil & Gas / Hydraulic / Pneumatic
HNBR / HNBR ED	Strength / wear / RGD	Oil & Gas / Hydraulic / Pneumatic
HPU / XSH-PU / LT-PU	Abrasion / dynamic performance	Hydraulic

Springs can be V-spring / Helical Spring

Common Spring Materials

Steel (302/301/304/316): Good for general use and moderate corrosion resistance.
Elgiloy: Cobalt-nickel alloy offering exceptional fatigue resistance and high strength.
Hastelloy: Nickel-molybdenum alloy designed for severe chemical and acidic environments.
Inconel: Nickel-chromium alloy ideal for extreme high-temperature and cryogenic duties.

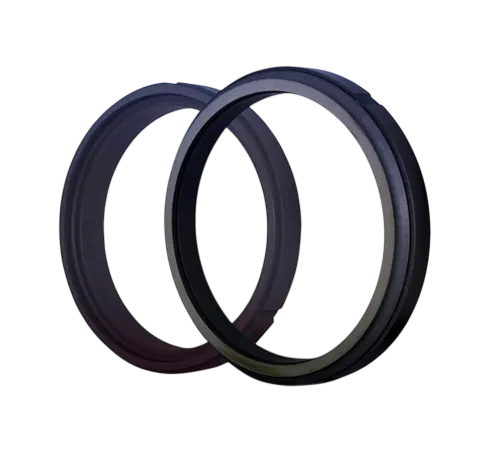

Spring-Energized Seals

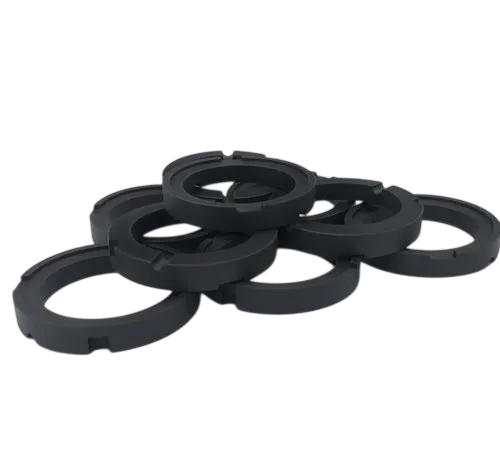

Spring-Energized Seals

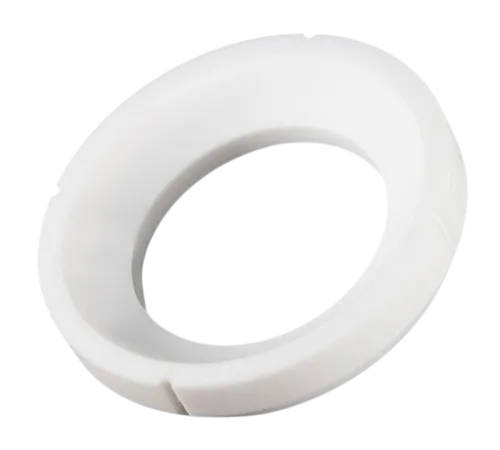

Spring-Energized Seals

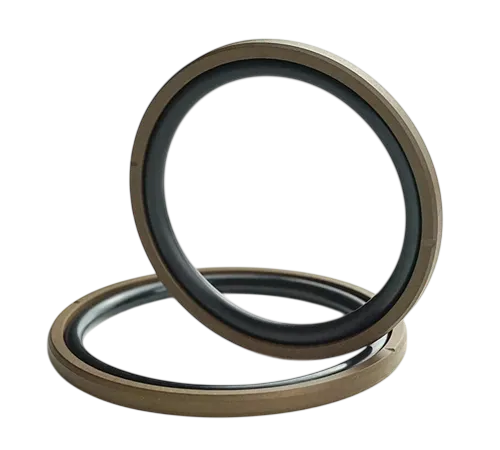

Spring-Energized Seals

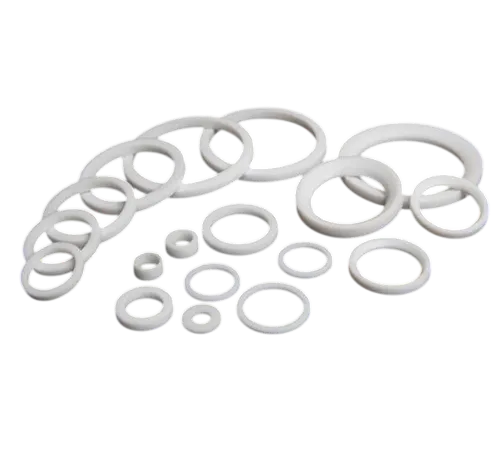

Spring-Energized Seals
